8HP / DCT Output Flange adapter 105-110mm with 18mm or 22mm inserts - CV Joint

1 395 kr
Inserts:
Quantity:

3 pieces in stock

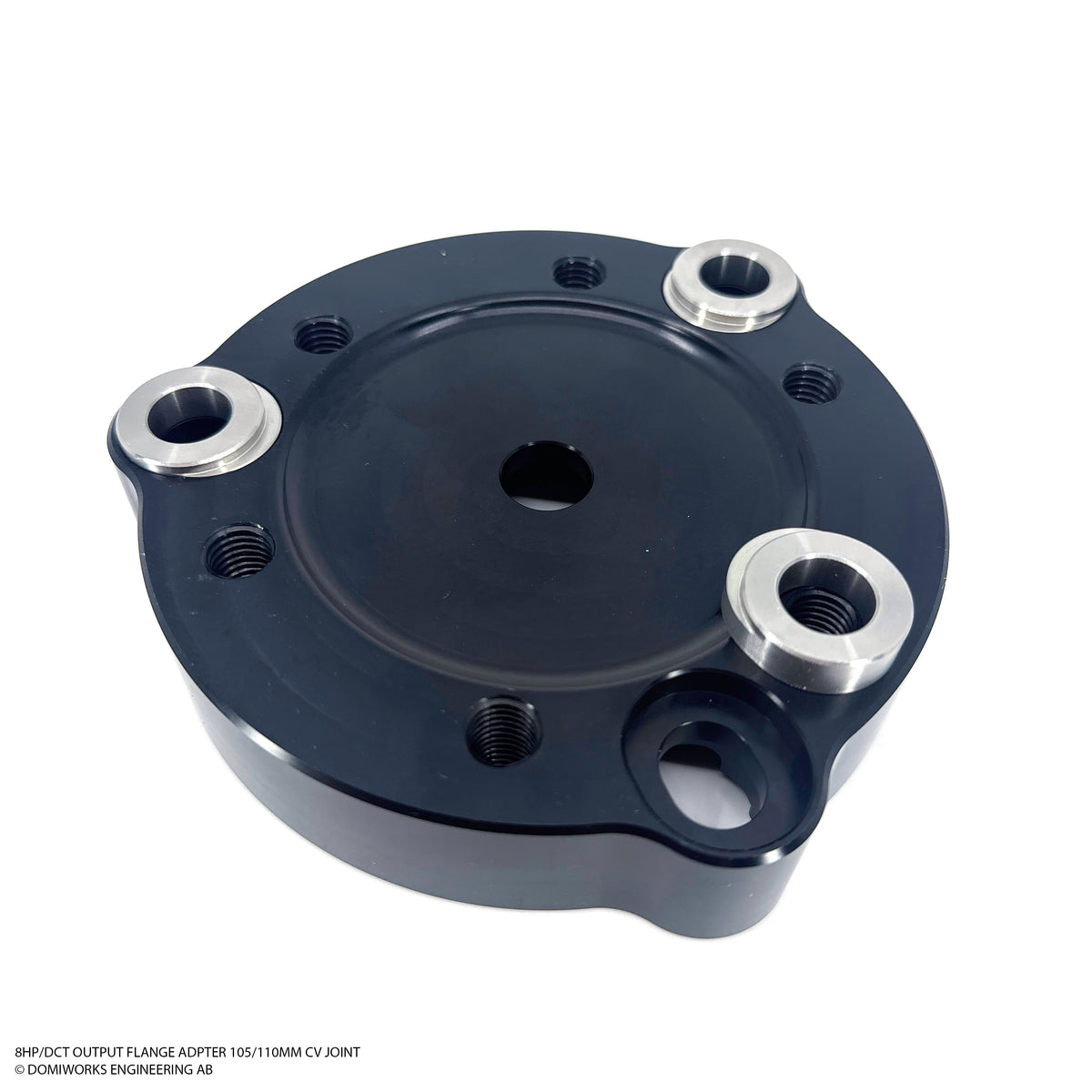

8HP / DCT Output Flange adapter 105-110mm with 18mm or 22mm inserts for CV Joint

Converts the output flange from 3-point hardy disc pattern to utilize a 6-bolt CV joint.

This new adapter now accepts both 105mm and 110mm PCD pattern. This new design now features steel inserts that easily can change from 105 to 110mm by just rotating them 180 degrees in their mounting hole.

You can select between 18mm and 22mm inserts depending on which version you have on your transmission. This means it covers both 8HP and DCT transmission.

Made of aluminium and anodized black. Stainless steel inserts for either 18mm or 22mm inserts.

Includes all mounting hardware necessary.

Adapter is 25mm thick.

Adapter is made for CV-Joint with 108mm outer diameter, 94mm PCD and M10 bolts.

Fits all BMW DCT Gearboxes with a 105mm or 110mm PCD on the output flange with 22mm inserts.
Fits all BMW 8HP Gearboxes with a 105mm or 110mm PCD on the output flange with either 18mm or 22mm insert.

Choose the inserts version you would like to use. You can include both versions for a reduced price.
