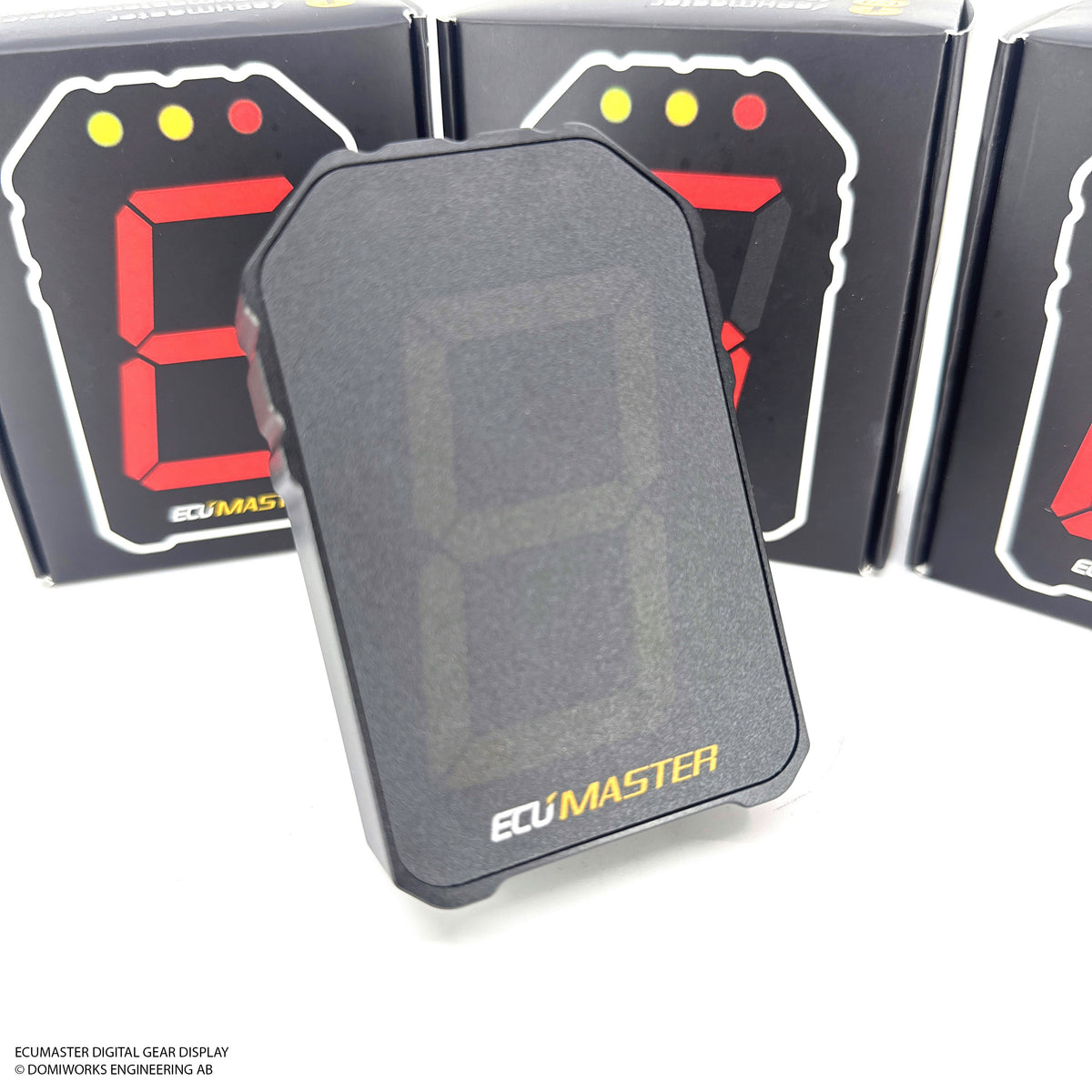

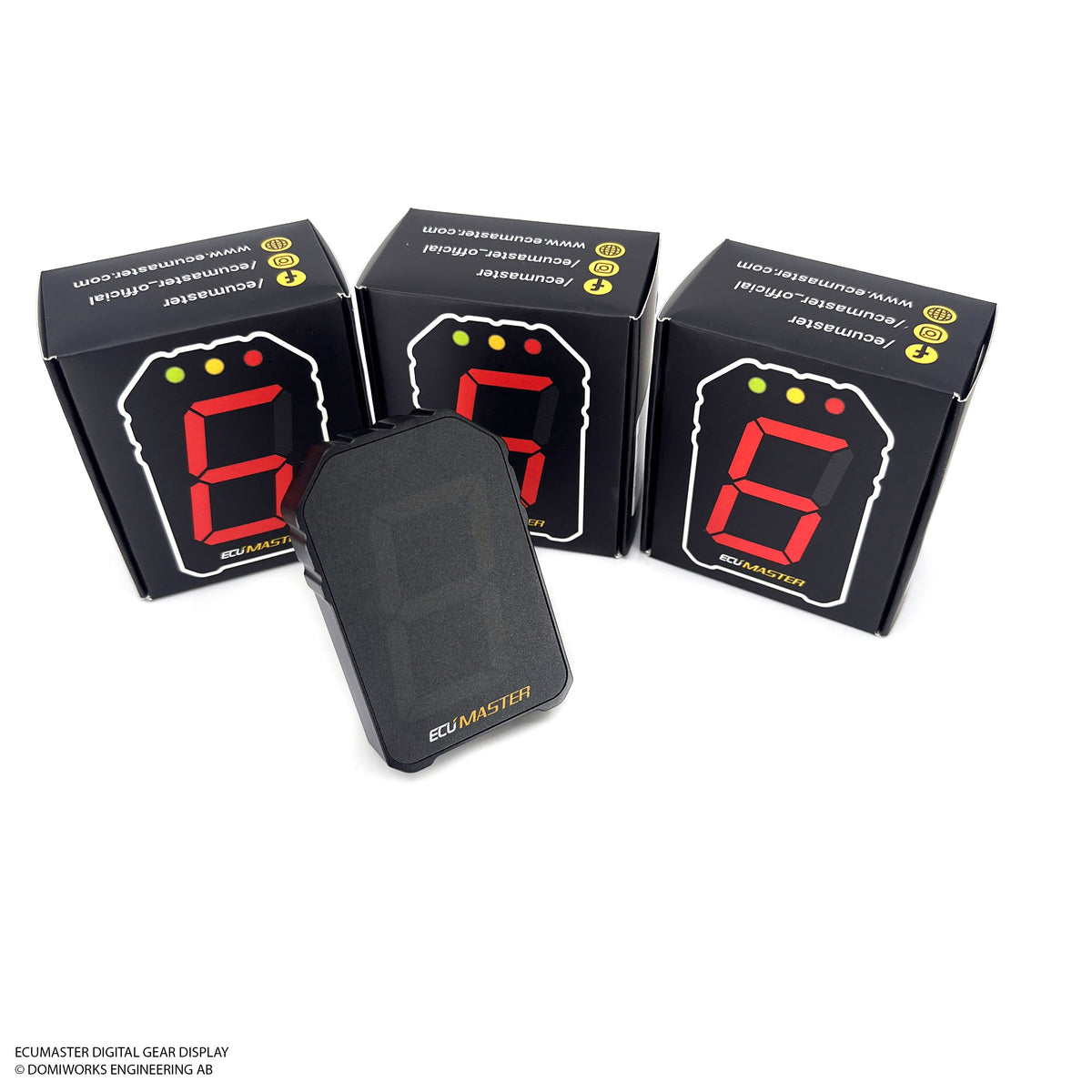

ECUMaster - Digital Gear Display

Who doesnt love a big digital 7-segment gear display in your driving office?

The digital gear indicator is designed to work with a stock or aftermarket ECU to display the current gear with an optional shift light. Gear calculations are made based on vehicle speed and engine RPM via OBD2 or CAN, or using a gearbox barrel position sensor.

The device is fully configurable via CAN BUS (communication, shift point per gear, etc., and can be used with virtual any CANBUS based ECU.
Thanks to the large and bright display, the indicated gear is readable in all lighting conditions. Display brightness can be controlled via CAN or by a potentiometer (when gearbox barrel position sensor is not connected).

The gear display is delivered in the default settings, if you need any specific settings we can configure it to your needs before we ship.

Key features:

Read gear from CAN, OBDII or analogue gear sensor
3 RGB LED customizable shift light
Easy to read large display (size)
Configurable via CAN BUS
Free firmware upgrades

Link to manufactures website where you can find technical documentation
