BMW 8HP AWD to RWD Conversion Adapter Kit - 105mm Guibo

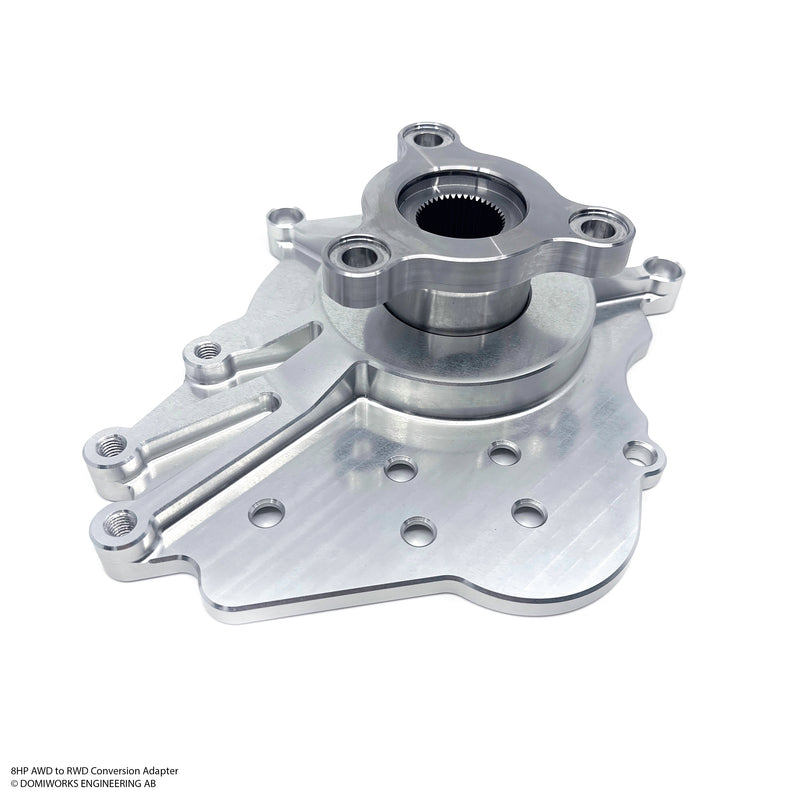

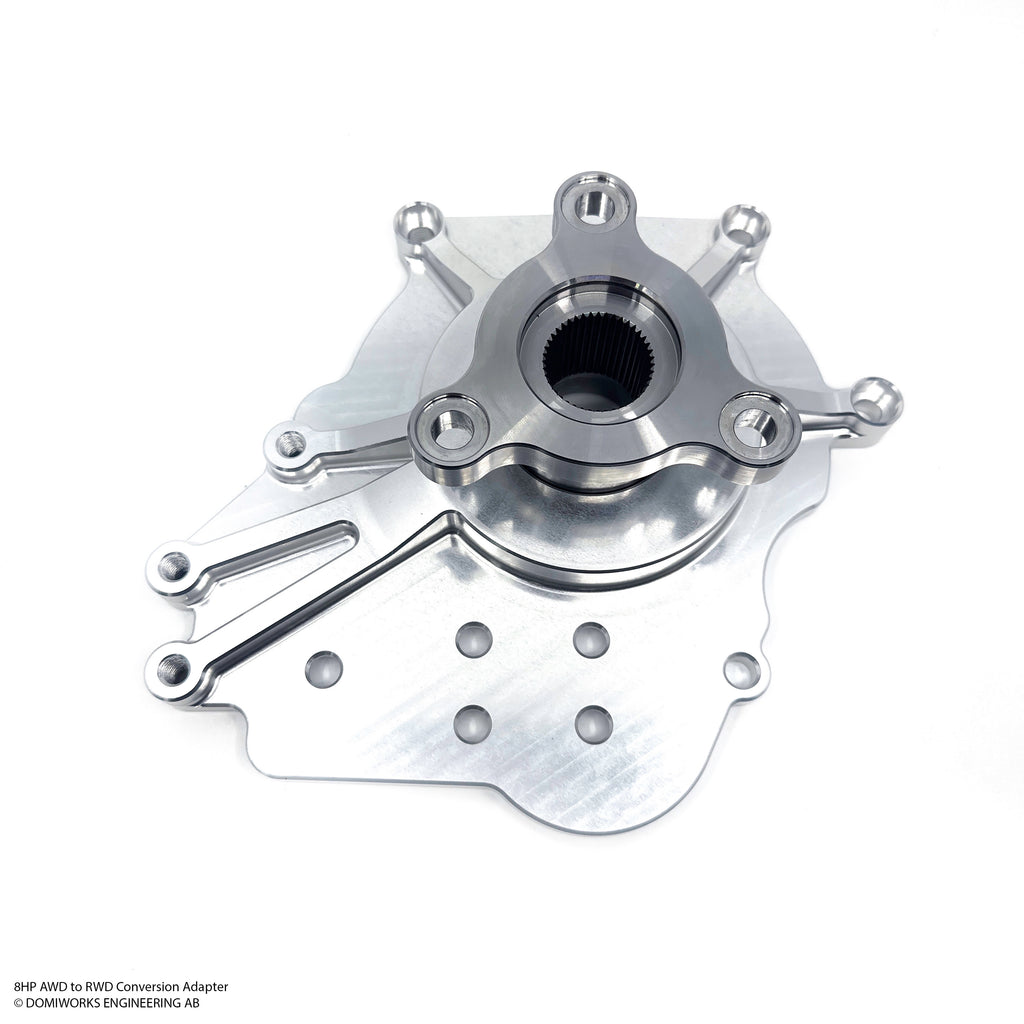

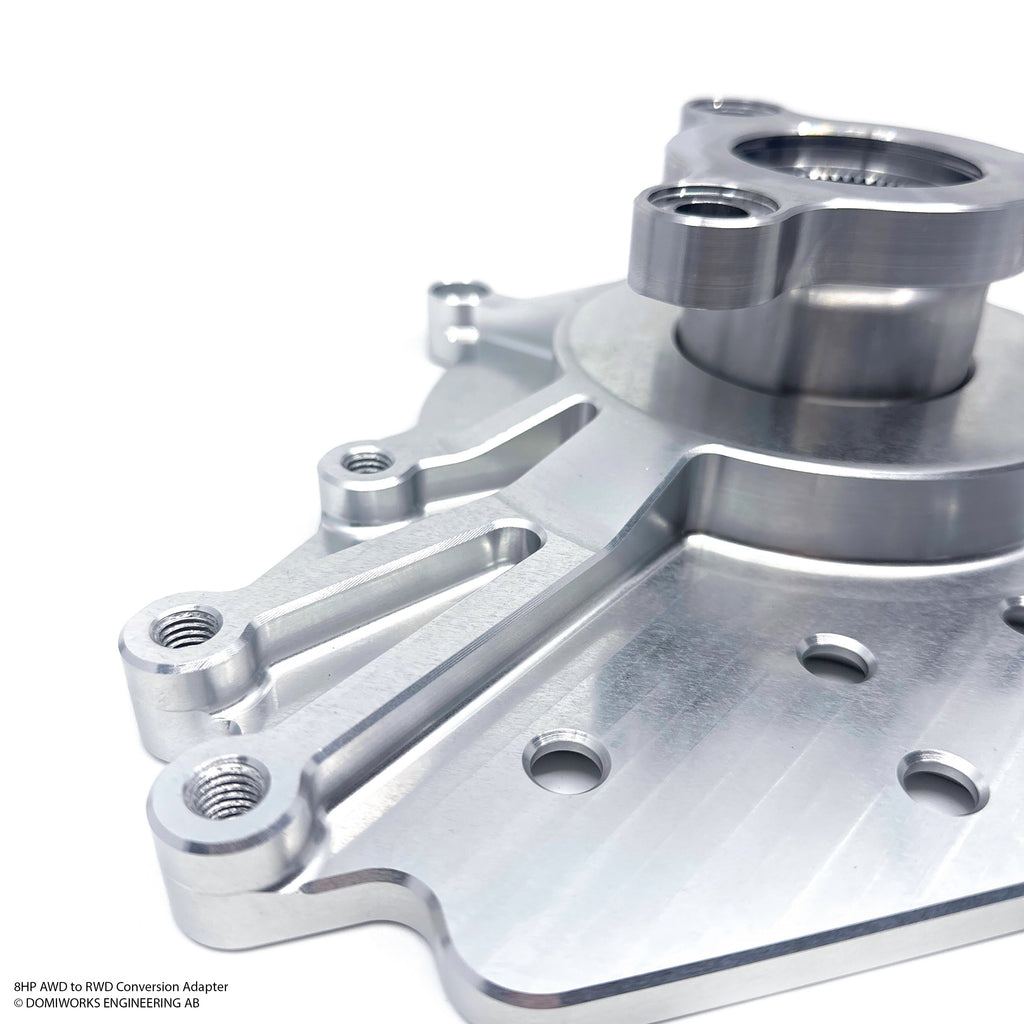

8HP AWD to RWD Conversion adapter kit
Difficult to find a RWD Transmission with the right specification? Can you only find tons of AWD transmissions?
We are proud to present a world first, we offer now a AWD to RWD conversion adapter kit.
Convert your AWD transmission to RWD in 1 minute, a bolt on conversion kit with everything you need to make it RWD.
Features dual transfer case patterns which means it fits both early and current design of the BMW 8HP transfer cases bolt pattern. ATC13-1 and earlier.
Confirmed fitment to:
8HP70x N57 (1st gen)
8HP75x B57 (2nd gen)
8HP76X B57 (3rd gen)
8HP90/95x N73/N74 (2nd gen)
Adapter plates houses a high speed bearing together with a new output flange made of high strength steel SS2541, the output flange mimics the most common 8HP Guibo output with a 105mm PCD and 22mm inserts. This means your 8HP 105mm OEM guibo fits right on.

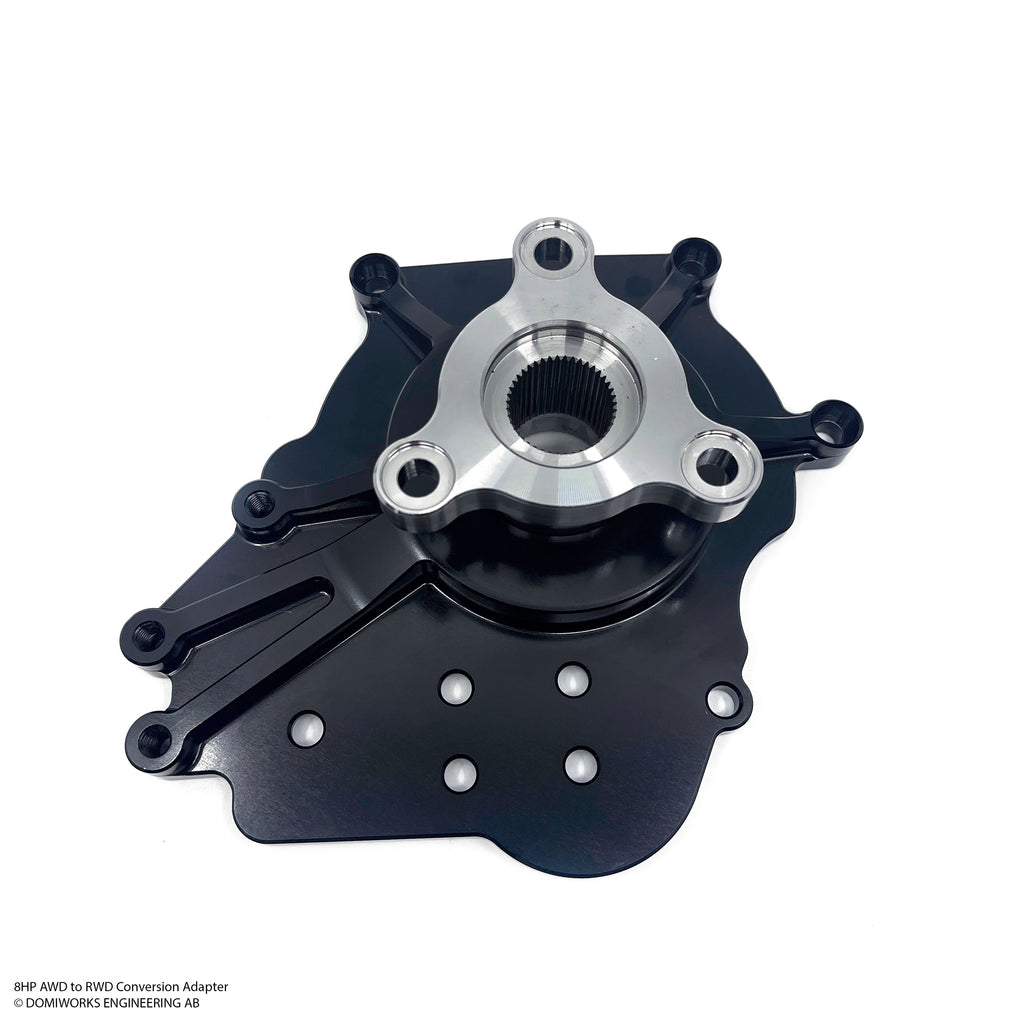

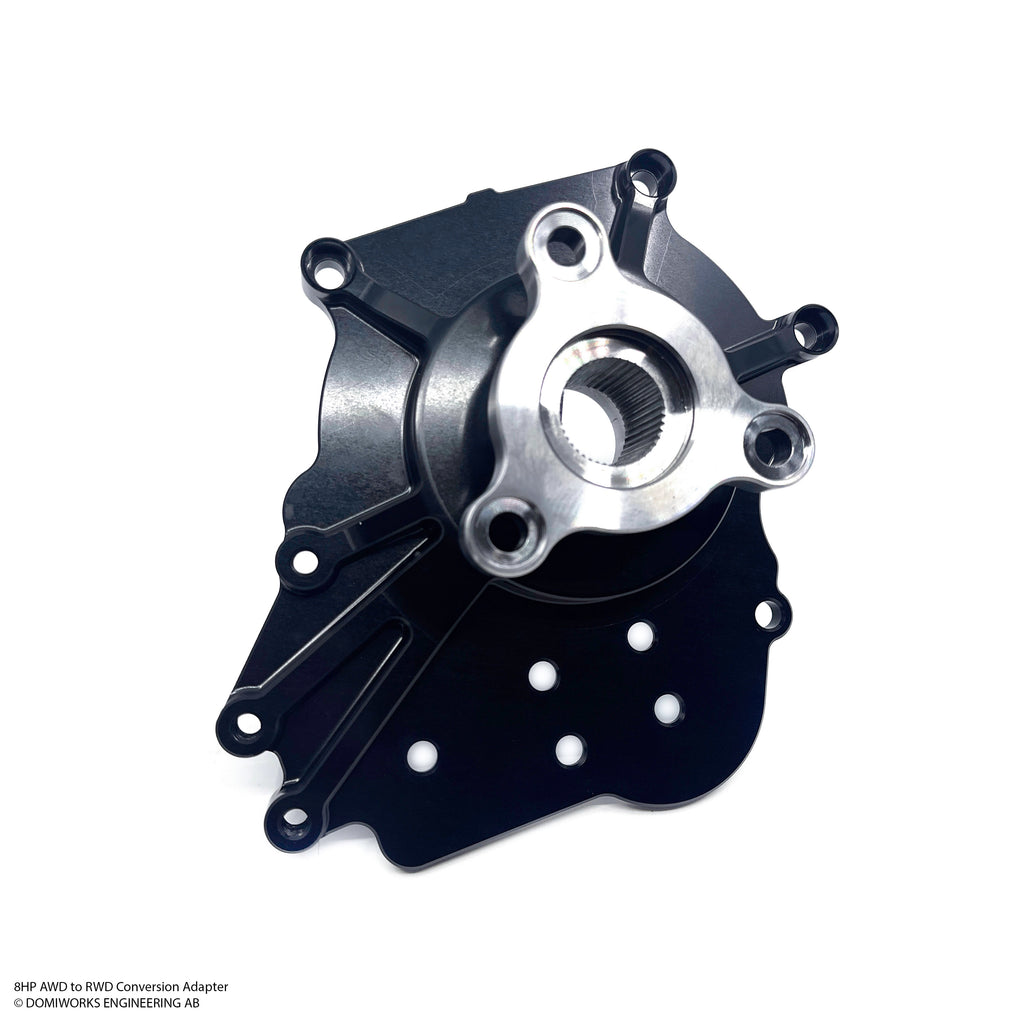

Available in two colors, natural and black anodizing.
Features several extra holes to be able to build a suitable crossmember bracket.
Everything comes assembled, installed on the transmission in less then a minute.
Adapter plate made out of high quality aliminium, anodized in a natural color to increase scratch resistance and give a premium customer experience. Output flange is made in high strength steel SS2541, same material as our flywheels and other hubs.
NOTE! This kit does not come with a crossmember mount, holes are prepared so the customer can fabricate one for their specific requirement. Countersunk bolts are included. The mount in the picture is NOT included.
The AWD to RWD conversion kits includes:
- AWD to RWD conversion adapter
- High speed RPM bearing
- New output flange, features 3-point guibo pattern 105mm with 22mm inserts
- Mounting hardware for the conversion adapter, output flange and crossmember bracket.
