Toyota 2GR/3GR/4GR - BMW 8HP 45/50/51/70/75/76 N47 N57 B57 B58 S58 ADAPTER KIT

Toyota 2GR/3GR/4GR - BMW 8HP 45/50/51/70/75/76 N47 N57 B57 B58 S58 ADAPTER KIT

Adapter kit to fit a BMW 8HP 45/50/70/75/76 N47 N57 B58 B57 S58 gearbox to a Toyota 2GR-FSE (RWD Longitudinal)
3GR-FE/FSE (RWD Longitudinal)
4GR-FSE (RWD Longitudinal)

Transmission compatiblity:
BMW 8HP45 N47 F-series
BMW 8HP50 B58 F-Series
BMW 8HP51 B58 G-Series
BMW  8HP70 N57 F-series
BMW 8HP75 B57 G-series
BMW 8HP76 B57/S58 G-series

All BMW with N57 styled bellhousing and flat converter with 6- or 4-bolt mounting pattern. Not 8HP45 N55 or N20.

Adapter plate adapter made out of high grade aluminum and natural anodized for a premium feel and experience.

TC Adapter made out of high grade aluminum and black anodized for a premium feel and experience. Laser engraved markings and text.

Adapter plate thickness is 25mm.

To be used with original Toyota 2GR/3GR/4GR flexplate.

NOTE! This kit does not work with 2GR/3GR/4GR FWD Engines. Only works with engines where the starter is mounted on the engine side. Also FWD engine has a different bolt pattern.

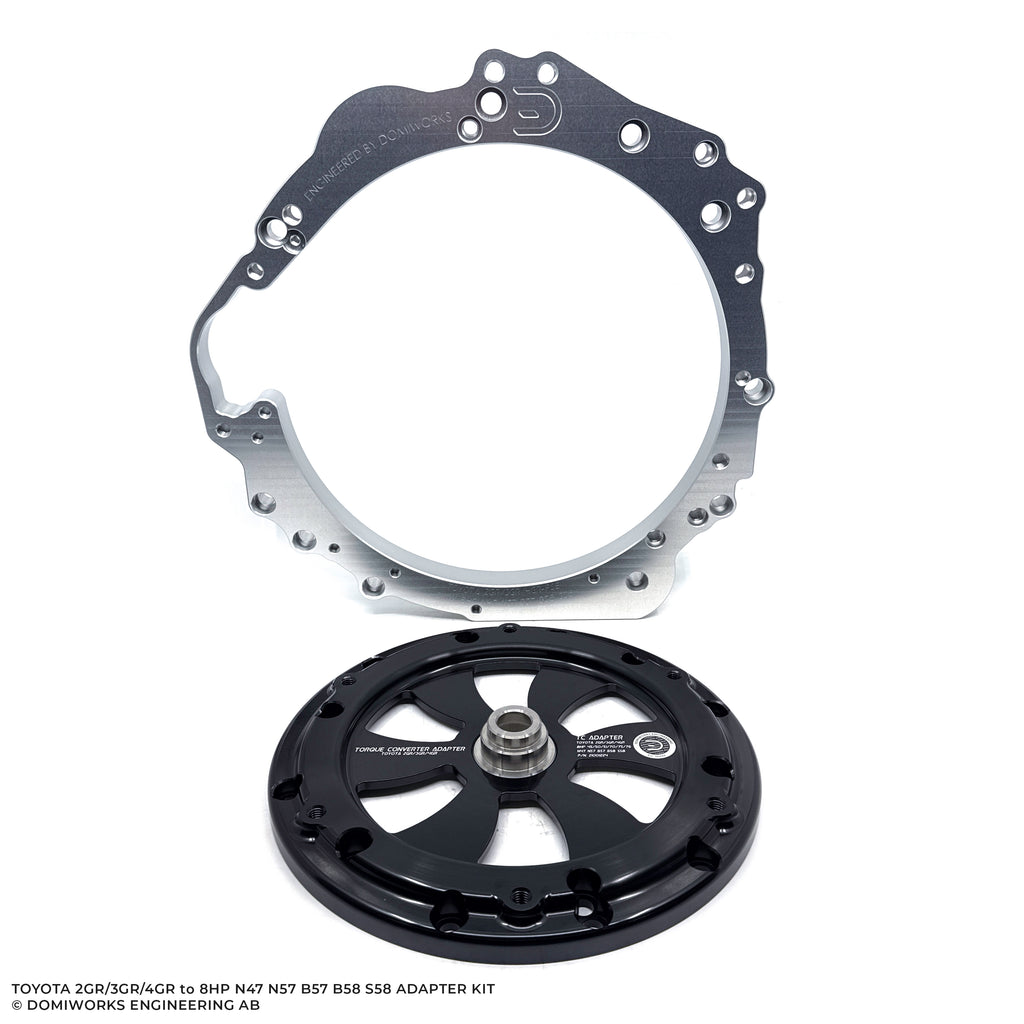

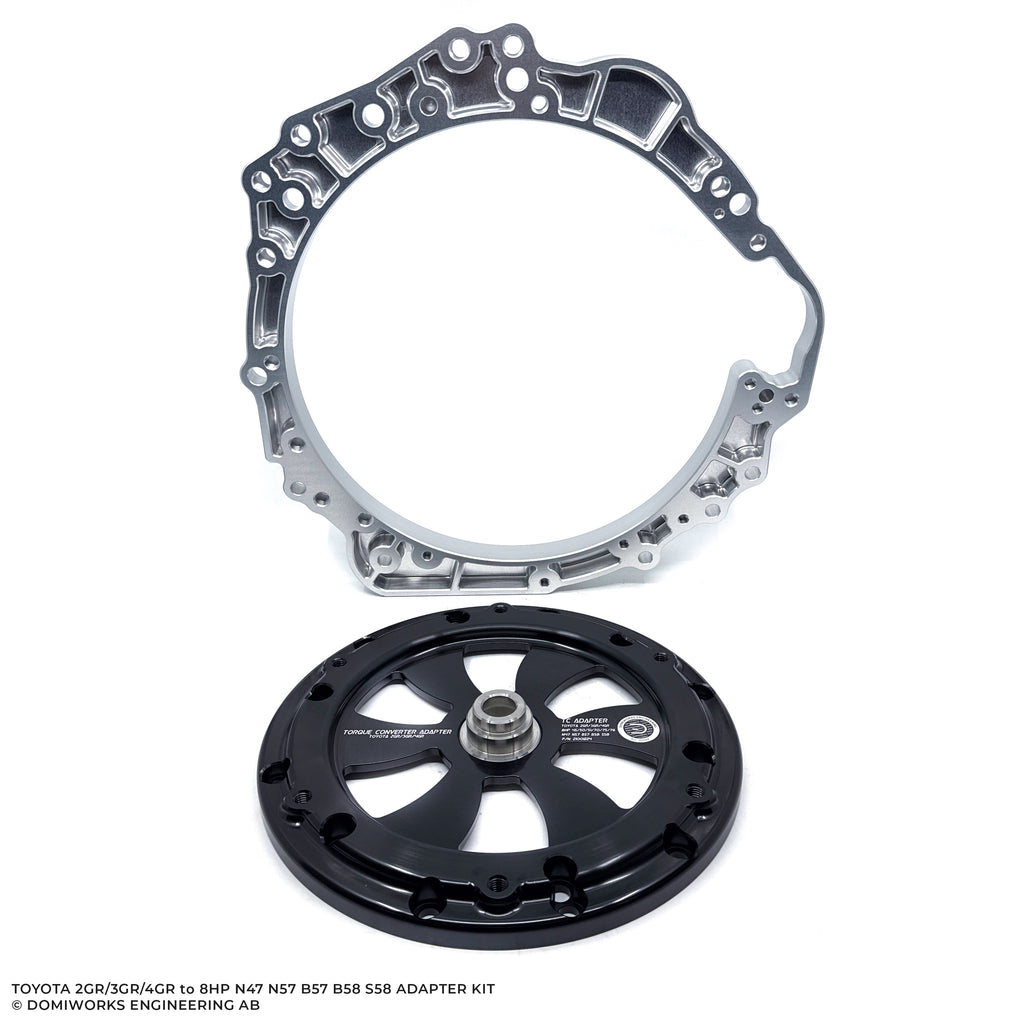

Adapter kit includes:

- 8HP 45/50/70/75/76 N47 N57 B58 B57 S58 Adapter plate

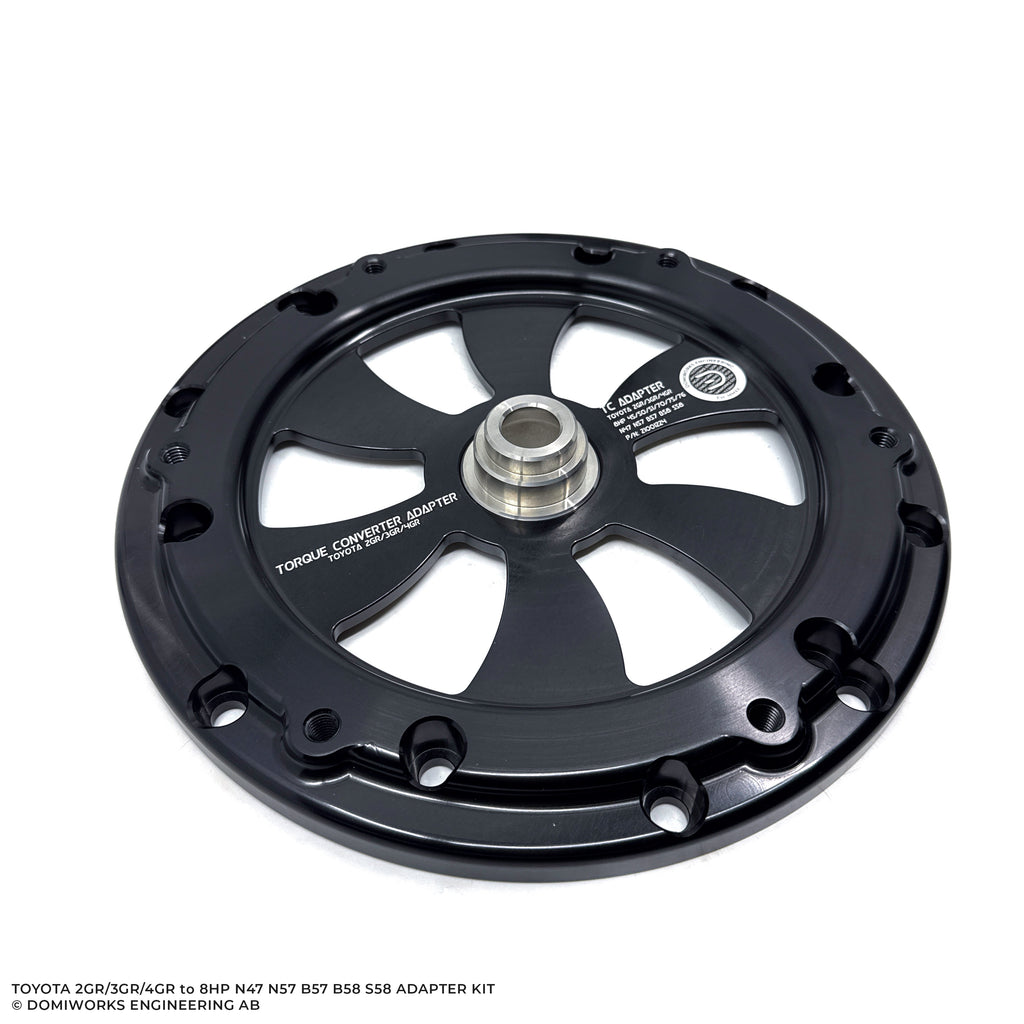

- TC Adapter with stainless steel center guide

- Mounting hardware such as bolts and dowels
