DomiWorks Engineering AB

BMW N54 N55 S55 to 8HP70 N57 Adapter Plate

£294

If applicable VAT will be applied during checkout.

BMW N54 N55 S55 to 8HP70 N57 Adapter Plate

Have you meet your limitation of your 8HP45 and want to upgrade to a 8HP70 gearbox.

This is the adapter kit for you.

Adapter kit to fit a BMW 8HP70 N57 gearbox to a BMW N54/N55/S55 engine.

To be used with the OEM N55 flexplate, with the adapter the N57 gearbox will get the same length and torque converter position as the 6HP gearbox.

A N55 8HP Torque converter can be installed in the N57 gearbox and will be a direct bolt-on to the N55 flexplate.

If you want to use the N57 torque converter a new bolt pattern needs to be added into the N57 torque converter. We recommend using our modification kit for the most easy installation.

Adapter plate and made out of high grade aluminum and natural anodized for a premium feel and experience.

Adapter plate thickness is 17mm.

S55 engine requires to drill a hole to get access to the torque converter bolts. Preferably in the starter area.

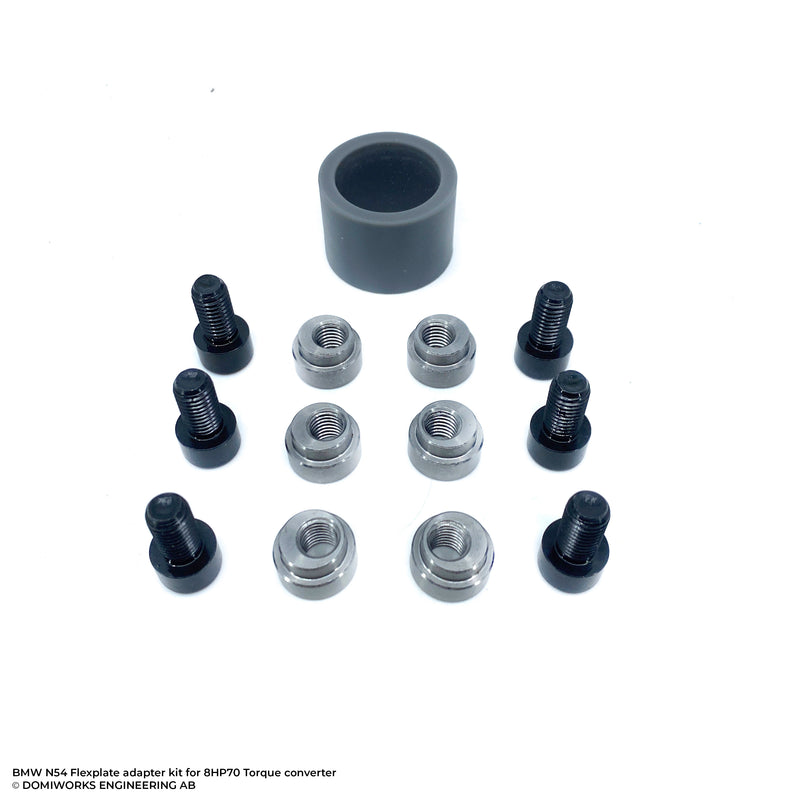

Adapter kit includes:

- 8HP70 N57 Adapter plate

- Mounting hardware such as bolts and dowels

Installation Instructions

Bolt reference guide adapter plate

Converter modification instructions
